POWERMAX2 – AIPW525H v.2

POWERMAX-2 support POE dan bisa jadi sebagai Switch POE

1 Watt  Wireless N Router

Speed up to 300Mbps

Bandwidth Control

5 SSID + VLAN  Control

WDS dengan enkripsi WPA/WPA2


AIP-W525H

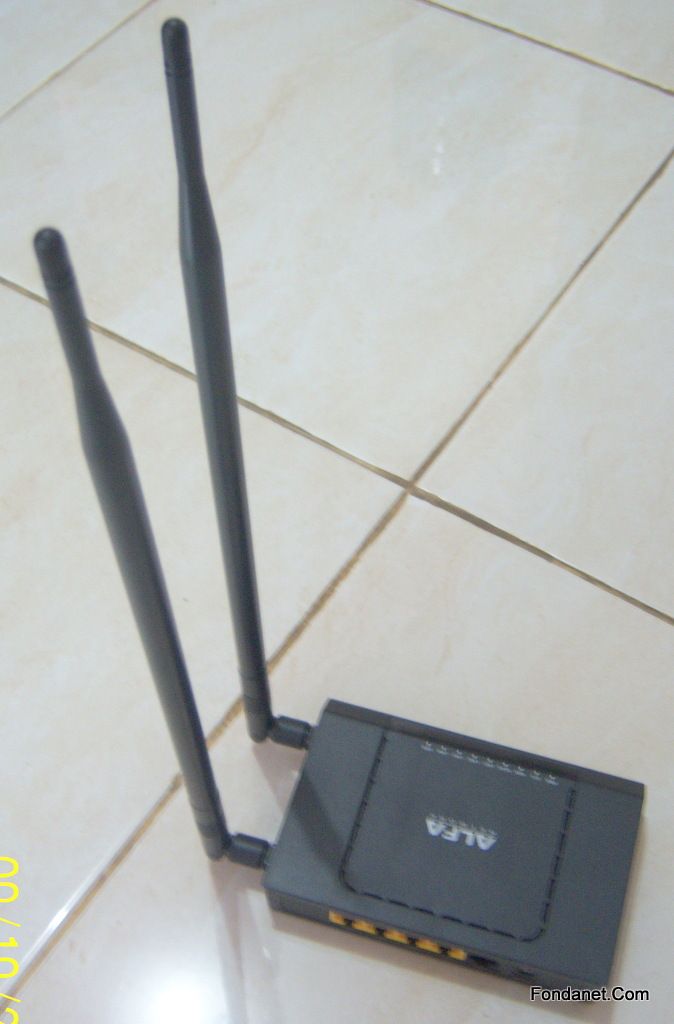

PowerMax 2, 802.11b/g/n High Power 2T2R AP/Router
AIP-W525 PowerMax 2 is a High-Power 4LAN + 1WAN AP/Router that is compliant to IEEE 802.11 b/g/n standard. PowerMax2 supports 2x the coverage range compared to any other router it also provides a high-speed data-rate up to 300Mbps. With a 2T2R MIMO technology you will be able to increase your signal coverage and stability within 1km distance. You will no longer need an external Wi-Fi signal booster or amplifier anymore.

Features :
2.4GHz IEEE 802.11n 2×2 MIMO
Complies with IEEE 802.11bg
Data-rate up to 300Mbps
High power and High sensitivity
Wide coverage
RF output power adjustable
Firewall, URL/IP/Port/MAC filtering
Firmware upgrade via HTTP
Support Gateway, Bridge and WISP mode
Multiple ESSID
QoS enhancement-WMM
TCP/UDP/ICMP/ARP protocol stack

Virtual DMZ, Port forwarding
Easy setup wizard
Web-based utility
Passive PoE

Specifications :
Model AIP-W525 (PowerMax 2)
Standard IEEE 802.11b/g/n
Chipset RTL8196C
Flash/SDRAM 2M / 16M
Antenna 2x 5dBi antennas detachable
Data Rate 802.11b: 11, 5.5, 2, 1Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps
802.11n(20MHz): up to 144Mbps
802.11n(40MHz): up to 300Mbps
Frequency 2.400~2.483GHz
Output Power 802.11b: up to 28 ± 1 dBm
802.11g: up to 26 ± 1 dBm
802.11n: up to 26 ± 1 dBm
Sensitivity -96dBm @ 802.11b
-91dBm @ 802.11g
-91dBm @ 802.11n
Security 64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)
WPA Mixed 802.1x authentication
Operation Temperature AP
Client
WDS
AP+WDS
Dimension(mm) 147 x 98 x 30 mm
Operation Temperature -20°C ~ 60°C
Storage Humidity 10% ~ 90% (Non-condensing)
Interface RP-SMA antennas connector x 2
RJ-45 WAN port x 1
RJ-45 LAN ports x 4
Power requirement DC Jack: 12V DC PoE: 12V Passive PoE

Sumber: Alfa Network

POE (Optional)

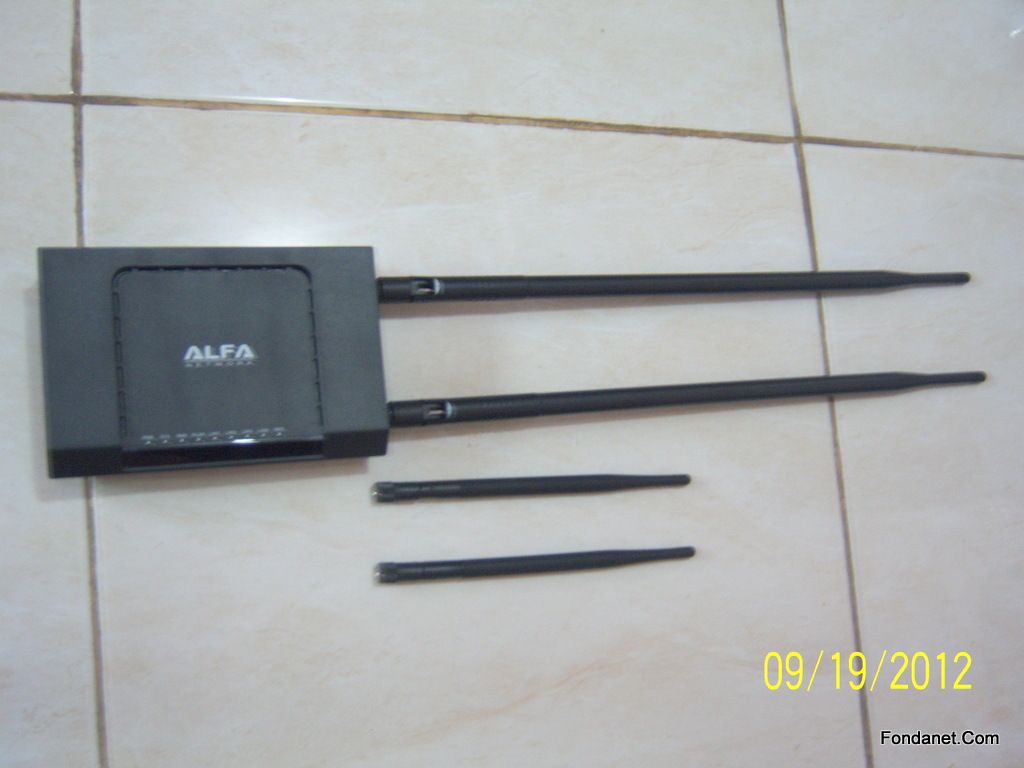

Antenna 9dBi dan 5dBi

Aksesoris untuk PowerMax2:

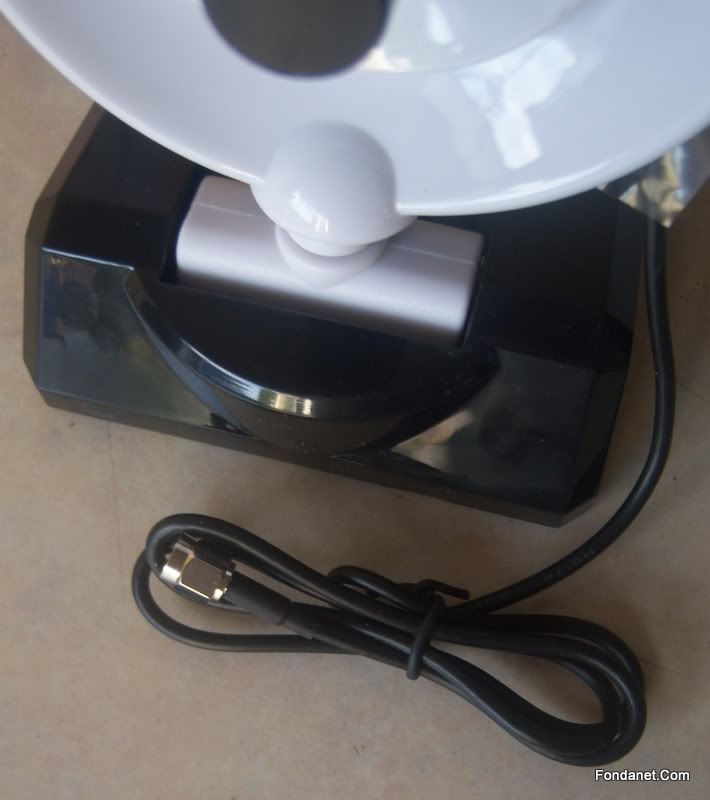

SR8DB, Antenna Radar 8dBi

Konektor RPSMA, Kabel 1 meter

SK-618A (Optional): Antenna Panel 10 dBi, Kabel 1 meter, 11.abgn

ARSN19MBP (Optional): Antenna omni 9dBi, Magnet base, kabel 1meter

POE (Optional)
